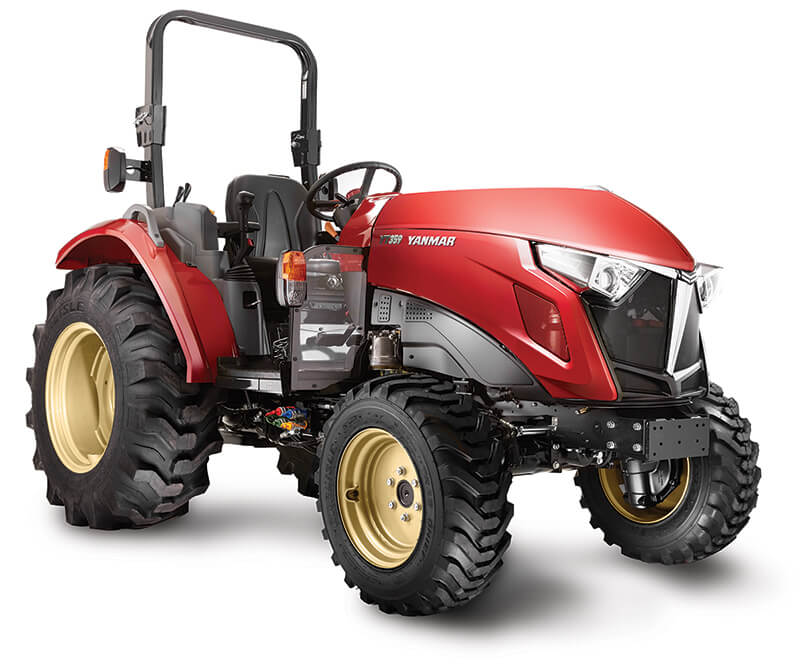

YT359
58.9 HP* DIESEL TRACTOR
When you need a tractor for bigger and tougher jobs, look no further than the Yanmar YT359. Comfortable and easy to operate, the YT359 uses advanced electronic controls and an integrated hydraulic mechanical transmission (i-HMT). No longer do you have to choose between an efficient, constant speed and flexible operation. The i-HMT creates the standard for performance versatility.
*As rated by engine manufacturer
High-Performance Drivetrain
The exclusive i-HMT design efficiently converts horsepower from a 4-cylinder diesel engine into the energy you need to run a wide range of attachments for mowing, plowing, digging, lifting and hauling. The Yanmar transmission lets you choose the right speed for every task and application.
- Low fuel consumption due to transmission efficiency
- Fingertip, clutch-less control of forward/reverse
- Stop the tractor without using the clutch
- 58.9 horsepower
Simple But Powerful
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT359 includes an auto throttle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches.
Yanmar designs and builds the major components – engine, front axle, transmission and final drive – to work together. Yanmar also smoothly integrates these features and optional attachments so you can get more work done quickly:
- Yanmar-designed front-end loader, with class-leading lift capacity of 2,500 pounds and an Industry-standard, skid-steer-style quick-attach system for buckets, forks and other attachments
- Large LCD display integrates with controls
- Engine surpasses U.S. Tier 4 clean air requirements
- One-touch-on/off, electro-hydraulic, independent rear power takeoff (PTO)
Warranty and service
- A five-year limited warranty on the powertrain is standard on all new Yanmar SA Series tractor purchases.
- Yanmar attachments are covered by a one-year limited warranty.
Specifications
Powertrain
| Alternator | 12-55 |
| Aspiration | Naturally Aspirated |
| Battery | 880 CCA |
| Cooling system | Liquid cooled |
| Fuel | Diesel |
| Gross Power | 58.9 HP (43.9 kW)* |
| Maker | Yanmar |
| Model | 4TNV98C Tier 4 |
| Number of cylinders | 4 |
| PTO Power at Working Speed | 52.0 HP (38.3 kW) |
| PTO Power at Zero Speed | 48.9 HP (36 kW) |
| Rated RPM | 2,500 RPM |
| Total displacement | 202.5 cu. In. (2.318 L) |
| Type | 58.9 Engine Horsepower* Diesel Tractor |
Capacities
| Fuel tank | 12.7 gal. (48 L) |
Drivetrain
| 2WD/4WD engagement | Selectable |
| Brakes | Mechanical wet disc |
| Number of ranges | 3 Range (Variable Speed) |
| Rear differential lock | Foot pedal engagement |
| Rear PTO/RPM | 540 RPM |
| Reverser | Power shift |
| Transmission type | I-HMT(Integrated Hydro Mechanical Transmission) |
Hydraulics
| 3-point hitch | Category 1 |
| 3-point lift capacity (std.) | 3,659 lbf. (1,660 kgf) |
| 3-point lift capacity at 24” (61 cm) | 3,086 lbf. (1,400 kgf) |
| 4-way loader control valve | Standard |
| Power steering | Fully Hydraulic |
| Pump capacity (implement) @ Rated | 9.4 GPM (35.5 L/min) |
| Pump capacity (steering) @ Rated RPM | 5.3 GPM (20.1 L/min) |
Dimensions
| Ground Clearance (with R4 Tires) | 12.8” (326 mm) |
| Overall height (with R4 Tires) | 89.5” (2,273 mm) |
| Overall length (with 3PH and R4 Tires) | 132.1” (3,355 mm) |
| Weight (with ROPS, R4 Tires, Full Fluid) | 4.039 lbs. (1,832 kg) |
| Wheelbase | 77.4” (1,967 mm) |
| Width (with R4 Tires) | 70.6” (1,793 mm) |
Tire size
| Ag (R1) - Front | 8” - 16” |
| Ag (R1) - Rear | 14.9” - 24” |
| Industrial (R4) - Front | 10” - 16.5” |
| Industrial (R4) - Rear | 17.5” L - 24” |
| Turf (R3) - Front | 27” x 10.5” - 15” |
| Turf (R3) - Rear | 44” x 18” - 20” |
Traveling speeds
| Forward (with R1 Tires) | 0 - 18 mph (0 - 29 kmh) |
| Reverse (with R1 Tires) | 0 - 18 mph (0 - 29 kmh) |
Warranty
| Attachments | 1-year limited warranty |
| Power train (Engine and transmission core components) | 5 years or 2,500 hours |
| Tractor (Private Individual Usage) | 24 months or 2,000 hours |
