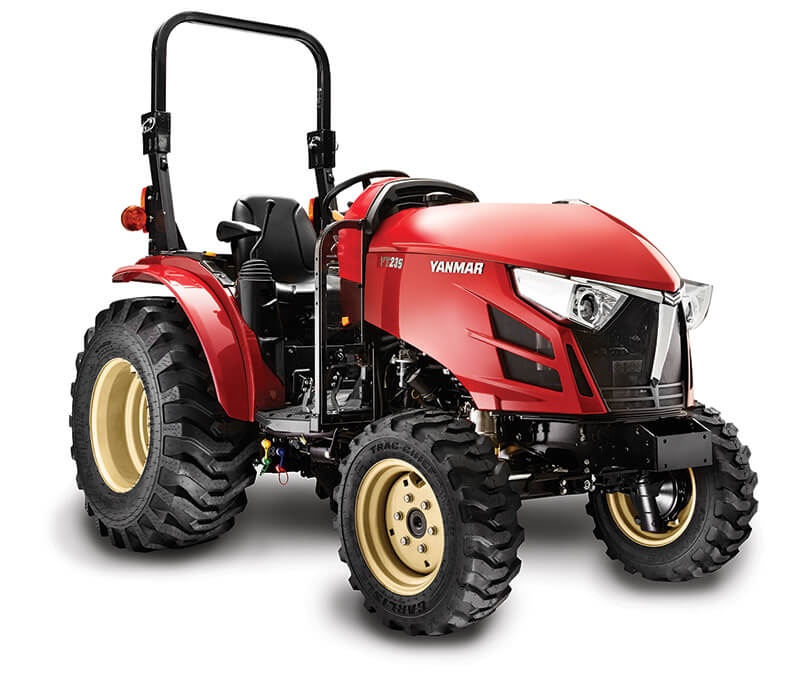

YT235
34.2 HP* DIESEL TRACTOR
The advanced styling of the Yanmar YT2 Series tractors is only the beginning. The YT235 is built to help you be more efficient and productive. Every day. From easy-to-use controls to the advanced engineering under the hood, the innovation of the YT235 goes much deeper than stunning aesthetics.
*As rated by engine manufacturer
Technological Superiority
The YT235 is equipped with a hydrostatic transmission that gives you an unlimited choice of tractor speeds. Quickly find the ideal speed for the easiest to the most-demanding jobs. To make work simple, the YT235 provides three speed ranges controlled by a left-hand shift lever.
- Dual pedals for comfortable and precise transmission operation
- Power steering for less operator fatigue
- Power takeoff (PTO) and three-point hitch for attachments
- 34.2 horsepower
Built Together To Work Together

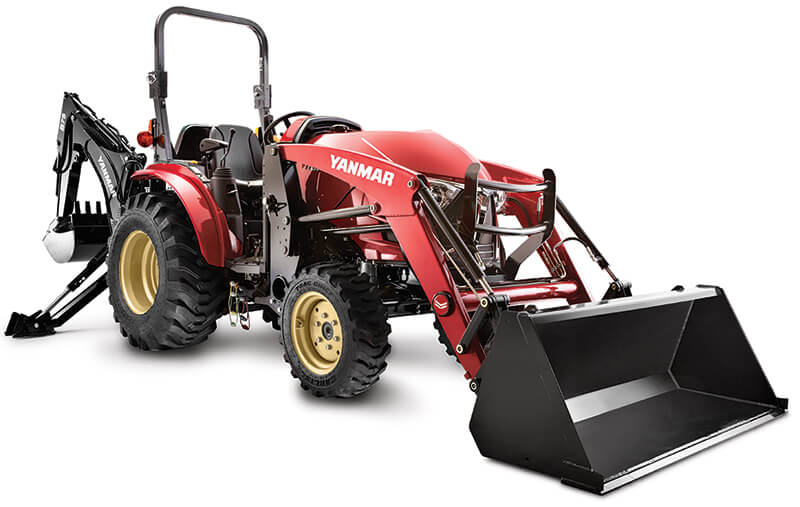

Whether a simple job or a complex dig, the YT235 has you covered. As with every Yanmar tractor, the true power lies in the fuel-efficient Yanmar diesel engine. That means the YT235 can do serious work with a front-end loader, a hydraulic backhoe and three-point hitch attachments for mowing, tilling, planting, digging, plowing and much more.
Yanmar designs and builds the major components – engine, front axle, transmission and final drive – to work together. We also smoothly integrate these features and optional attachments so you can get more work done quickly:

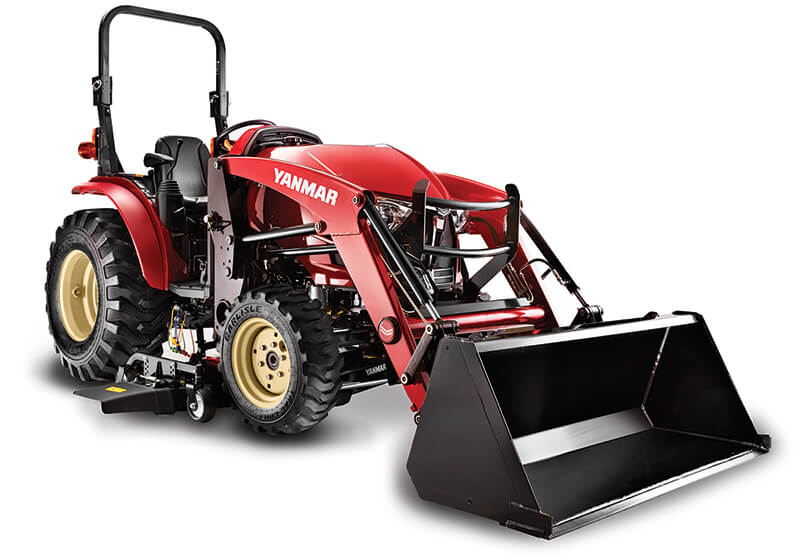

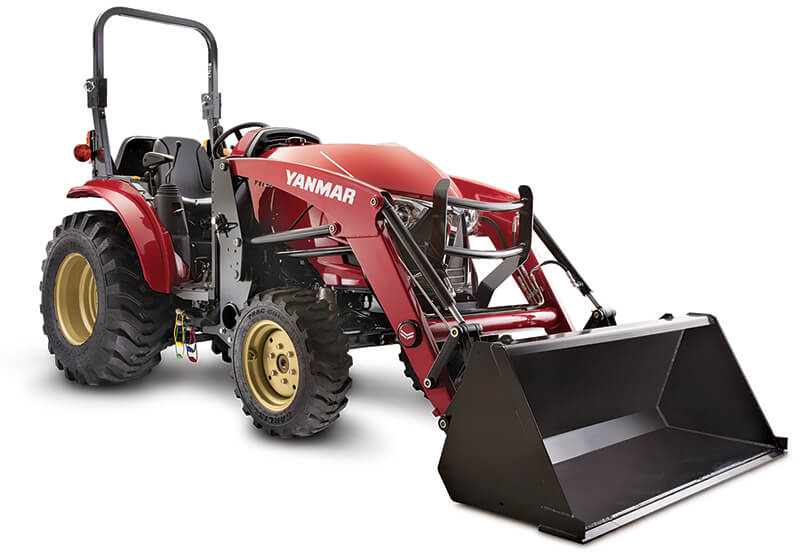

- Yanmar-designed front-end loader, with lift capacity of 1,300 pounds and industry-standard, skid-steer-style, quick-attach for buckets, forks and other attachments
- Hydraulic backhoe with 7.5-foot digging depth
- 60-inch, mid-mount, drive-over mower
- Dual hydraulic pumps
- Smooth hydraulic power steering
- One-touch-on/off, electro-hydraulic, independent rear PTO
Warranty and service
- A five-year limited warranty on the powertrain is standard on all new Yanmar SA Series tractor purchases.
- Yanmar attachments are covered by a one-year limited warranty.
Specifications
Powertrain
| Alternator | 12-40 |
| Aspiration | Naturally Aspirated |
| Battery | 540 CCA |
| Cooling system | Liquid cooled |
| Fuel | Diesel |
| Gross Power | 34.2 HP (26.1 kW)* |
| Maker | Yanmar |
| Model | 3TNV88C Tier 4 |
| Number of cylinders | 3 |
| PTO Power at Zero Speed | 27 HP (20.1 kW) |
| Rated RPM | 2,800 RPM |
| Total displacement | 100.1 cu. In. (1.642 L) |
| Type | 34.2 Engine Horsepower* Diesel Tractor |
Capacities
| Fuel tank | 7.4 gal. (28 L) |
Drivetrain
| 2WD/4WD engagement | Selectable |
| Brakes | Wet disc |
| Mid PTO/RPM | 2,103 RPM |
| Number of ranges | 3 |
| Rear differential lock | Foot pedal engagement |
| Rear PTO/RPM | 540 RPM |
| Transmission type | Hydrostatic (Dual Touch Pedal) |
Hydraulics
| 3-point hitch | Category 1 |
| 3-point lift capacity (std.) | 2,205 lbf. (1,000 kgf) |
| 3-point lift capacity at 24” (61 cm) | 1,764 lbf. (800 kgf) |
| 4-way loader control valve | Standard |
| Power steering | Fully Hydraulic |
| Pump capacity (implement) @ Rated | 7.1 GPM (26.8 L/min) |
| Pump capacity (steering) @ Rated RPM | 4.1 GPM (15.5 L/min) |
Dimensions
| Ground Clearance (with R4 Tires) | 10.8” (274 mm) |
| Overall height (with R4 Tires) | 89.0” (2,261 mm) |
| Overall length (with 3PH and R4 Tires) | 116.9” (2,970 mm) |
| Weight (with ROPS, R4 Tires, Full Fluid) | 2,558 lbs. (1,160 kg) |
| Wheelbase | 65” (1,650 mm) |
| Width (with R4 Tires) | 58.3” (1,482 mm) |
Tire size
| Ag (R1) - Front | 6” - 14” |
| Ag (R1) - Rear | 9.5"” - 22” |
| Industrial (R4) - Front | 25” - 8.5” - 14" |
| Industrial (R4) - Rear | 15” - 19.6” |
| Turf (R3) - Front | 25" x 8.5" - 14" |
| Turf (R3) - Rear | 13.6" - 16" |
Traveling speeds
| Forward (with R1 Tires) | 0 - 11.7 mph (0 - 18.9 kmh) |
| Reverse (with R1 Tires) | 0 - 8.2 mph (0 - 13.2 kmh) |
Warranty
| Attachments | 1-year limited warranty |
| Power train (Engine and transmission core components) | 5 years or 2,500 hours |
| Tractor (Private Individual Usage) | 24 months or 2,000 hours |
