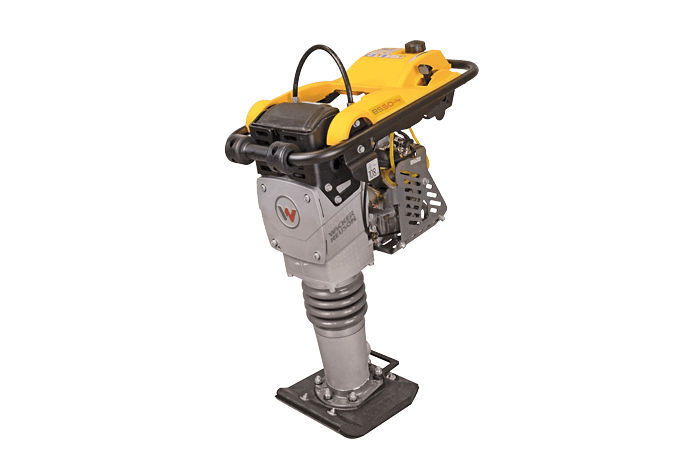

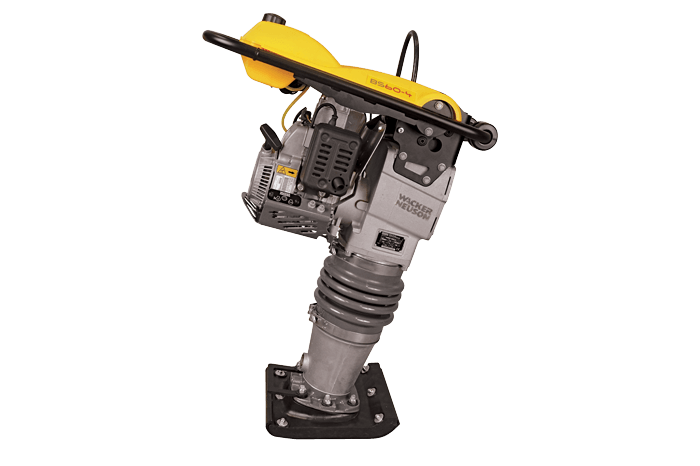

BS50-4s | BS60-4s | BS70-4As

Four-cycle Rammers




The outstanding features of Wacker Neuson's four-cycle rammers are the compact design and high performance. The long shoe stroke, high percussion rate and high stroke energy combined with fast advance travel achieve excellent results.

Product availability can vary from country to country. It is possible that information / products may not be available in your country.

Details

Choice of two engine options: Wacker Neuson or Honda. Designed for the compaction of cohesive, mixed and granular soils in confined areas
Low oil protection: Wacker Neuson: An LED indicator lights up if the rammer is started with insufficient oil levels, and the engine shuts down automatically after 10 seconds to prevent engine damage. Honda: When starting the unit, a sensor detects no oil or low oil and does not allow the engine to start.
A unique four-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance.
Simple operation: The integrated fuel valve in the throttle means that there is only one lever for acceleration and shut-off.

	Technical Specifications













				BS50-4s
				BS50-4As
				BS60-4s
				BS60-4As
				BS70-4As


				Operating weight lb
				139
				141
				156.5
				158
				177


				Ramming shoe size (WxL) in
				11 x 13.3
				11 x 13.3
				11 x 13.2
				11 x 13.2
				11 x 13.2


				L x W x H in
				26.5 x 13.5 x 37
				26.5 x 13.5 x 37
				26.5 x 13.5 x 38
				26.5 x 13.5 x 38
				26.5 x 13.5 x 38


				Stroke at the ramming shoe
				2.6 in
				2.2 in
				2.7 in
				3.1 in
				2.9 in


				Percussion rate max. blows/min
				684
				681
				680
				690
				678


				Operating speed Travel Speed
				24.8 ft/min
				24.6 ft/min
				28 ft/min
				23 ft/min
				23 ft/min


				Surface capacity Compaction
				1,368 ft²/h
				1,324 ft²/h
				1,543 ft²/h
				1,267 ft²/h
				1,267 ft²/h




	Engine / Motor













      WM 100
      GX 100
      WM 100
      GX 100
      GXR120


      Manufacturer
      Wacker Neuson
      Honda
      Wacker Neuson
      Honda
      Honda


      Engine / Motor
      air-cooled single-cylinder four-cycle gasoline engine
      air-cooled single-cylinder four-cycle gasoline engine
      air-cooled single-cylinder four-cycle gasoline engine
      air-cooled single-cylinder four-cycle gasoline engine
      air-cooled single-cylinder four-cycle gasoline engine


      Displacement
      5.9 in³
      5.98 in³
      5.9 in³
      5.98 in³
      7.38 in³


      Operating performance
     3.2 hp
      3.2 hp
      3.2 hp
      3.2 hp
      3.6 hp


      RPM
      4,200
      4,200
      4,200
      4,200
      3,600


      Fuel consumption
      0.31 gal/h
      0.234 gal/h
     0.31 gal/h
     0.234 gal/h
      0.234 gal/h


      Fuel capacity
      3.2 qt
      3.2 qt
      3.2 qt
      3.2 qt
      3.2 qt
