WL52
75hp Articulated Wheel Loader
The WL 52 articulated wheel loader is the ideal machine for a variety of jobs. It is equipped with a 74-HP turbo charged Deutz T4F diesel engine. With standard auxiliary hydraulic flow of 18 gpm and high flow of 33 gpm (optional) allows for operation of high performance attachments. With travel speeds up to 19 mph, getting around the jobsite is extremely efficient. The operator's station is ergonomically laid out for the comfort and convenience of the operator, reducing fatigue and increasing productivity. Operating elements including a multifunctional single lever control and an additional lever for the third control circuit, are conveniently arranged next to the driver's seat for easy operation.
Product availability can vary from country to country. It is possible that information / products may not be available in your country.
Details
- Deutz Tier 4 Final, 74-hp engine offers a maintenance-free aftertreatment

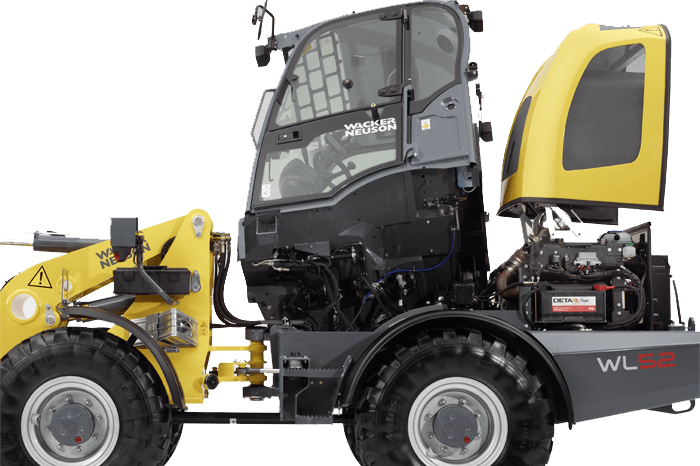

- The tilting driver's cab provides optimum service access
- Universal hydraulic attachment plate allows flexibility for use of current and new attachments
- Faster quick connect hydraulic connector provides quick and easy changing of attachments
- A 14-pin wiring harness allows the operator to control multiple attachment functions simply from the unit's single joystick
Technical specifications
Engine / Motor |
|
| Engine / Motor manufacturer | Deutz |
| Engine / Motor type | TCD 2.9 L4 |
| Cylinder | 4 |
| Engine performance | 75 hp |
| at rpm maximum | 2,300 rpm |
| Displacement | 177 in³ |
| Coolant type | Water / Charge Air |
Electrical system |
|
| Operating voltage | 12 V |
| Battery | 95 Ah |
| Alternator | 95 A |
Weights |
|
| Operating weight | 11,243.5 lb |
| Lifting force maximum | 6,755.5 lb |
| Breakout force maximum | 9,538.6 lbf |
Vehicle data |
|
| Bucket capacity Standard bucket | 0.981 yd³ |
| Traction drive | Hydrostatic with universal joint shaft |
| Axles | PA 1400 |
| Drivers cab | Cabin |
| Speed (standard) | 0-12.43 mph |
| Speed (optional) | 0-18.6 mph |
| Speed Level | 2 |
| Standard tires | 405/70-18 EM ET 0 |
Hydraulic system |
|
| Driving hydraulics - operating pressure | 6,454.28 psi |
| Operating hydraulics - operating pressure | 3,335.92 psi |
| Operating hydraulics - discharge capacity | 15 US gpm |
| Operating hydraulics - discharge capacity (optional up to) | 30.16 US gpm |
Filling capacities |
|
| Tank capacity (fuel) | 21.3 US gal |
| Hydraulic oil tank | 69.7 US qt |
Sound level |
|
| Average sound power level LwA | 103.3 dB(A) |
| Guaranteed sound power level LwA | 101 dB(A) |
| Specified sound pressure level LpA | 78 dB(A) |
