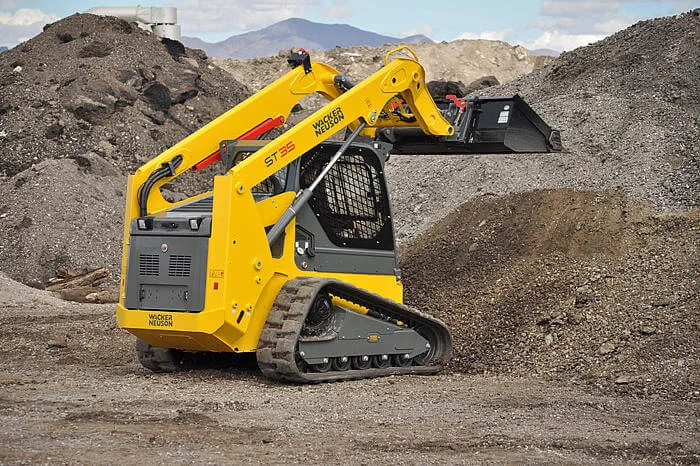

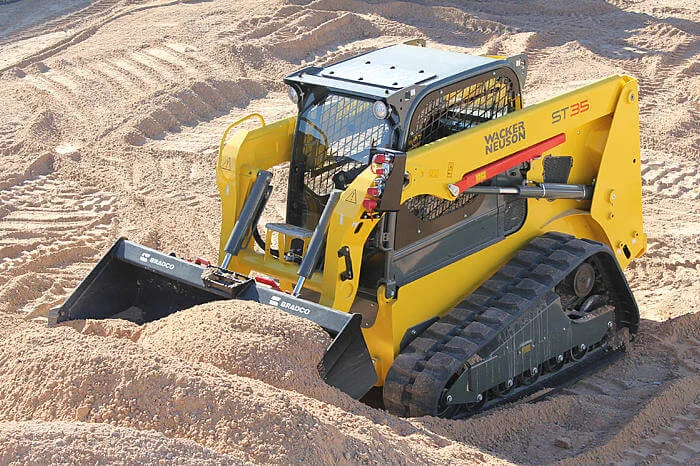

ST35
Radial Lift Track Loader
The SW 28 brings maximum reach making it ideal for loading and unloading. The SW 28 delivers 2,800 pounds of rated operating capacity at 50% and a lift height up to 134 inches. The machine is equipped with a 74.3 hp turbo-charged Perkins Tier IV Final engine. Available in both H-pattern and ISO joystick pilot controls, the machines can fit the preferences of any user. The ergonomically designed controls and pressurized cab delivers comfort and visibility, reducing operator fatigue, increasing productivity.
Product availability can vary from country to country. It is possible that information / products may not be available in your country.
Details
- Standard two-speed transmission increases travel time on job sites giving the operator more time throughout the day to get more tasks completed.
- Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
- Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
- Hydraulically driven fan operates on an as-needed basis allowing faster warm-up times of the engine and significantly reducing noise.
- Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.
Operating Data
| Height top of ROPS | 81.9 in |
| Overall length w/ bucket | 144.2 in |
| Overall length w/o bucket | 116.1 in |
| Height Hinge Pin Max | 125.9 in |
| Operating weight | 9,827 lb |
| Rated Operating Capacity ROC 50% | 3,500 lb |
| Rated Operating Capacity ROC 35% | 2,450 lb |
| Length of track on ground | 63 in |
| Dump height max. at max height | 95.2 in |
| Angle of departure | 30 ° |
| Tipping angle (bucket dump) w/ bucket at max height | 45 ° |
| Ground clearance | 9.4 in |
| Breakout force max. - Bucket | 6,717 lbf |
| Breakout force max. - Boom | 6,167 lbf |
| Bucket width | 78 in |
| Width w/o bucket | 76 in |
| Width Track | 17.7 in |
Engine / Motor
| Engine / Motor | Turbo-Charged Perkins 854 Tier 4 Final |
| Engine performance | 74 hp |
| Fuel tank capacity | 24.3 US gal |
Hydraulic System
| Auxiliary Hydraulics- Standard Flow | 22.5 US gpm |
| Auxiliary Hydraulics- High Flow | 35.9 US gpm |
| Pressure Aux. relief | 3,338 psi |
Power Transmission
| Travel speed (low) | 4.3 mph |
| Travel speed (high) | 7.5 mph |
