221
21.5 HP* DIESEL TRACTOR

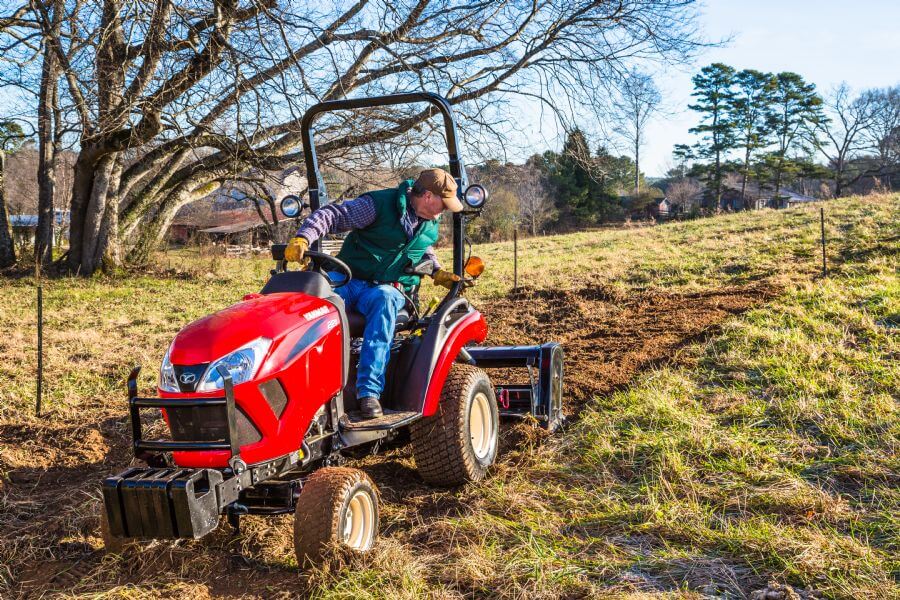

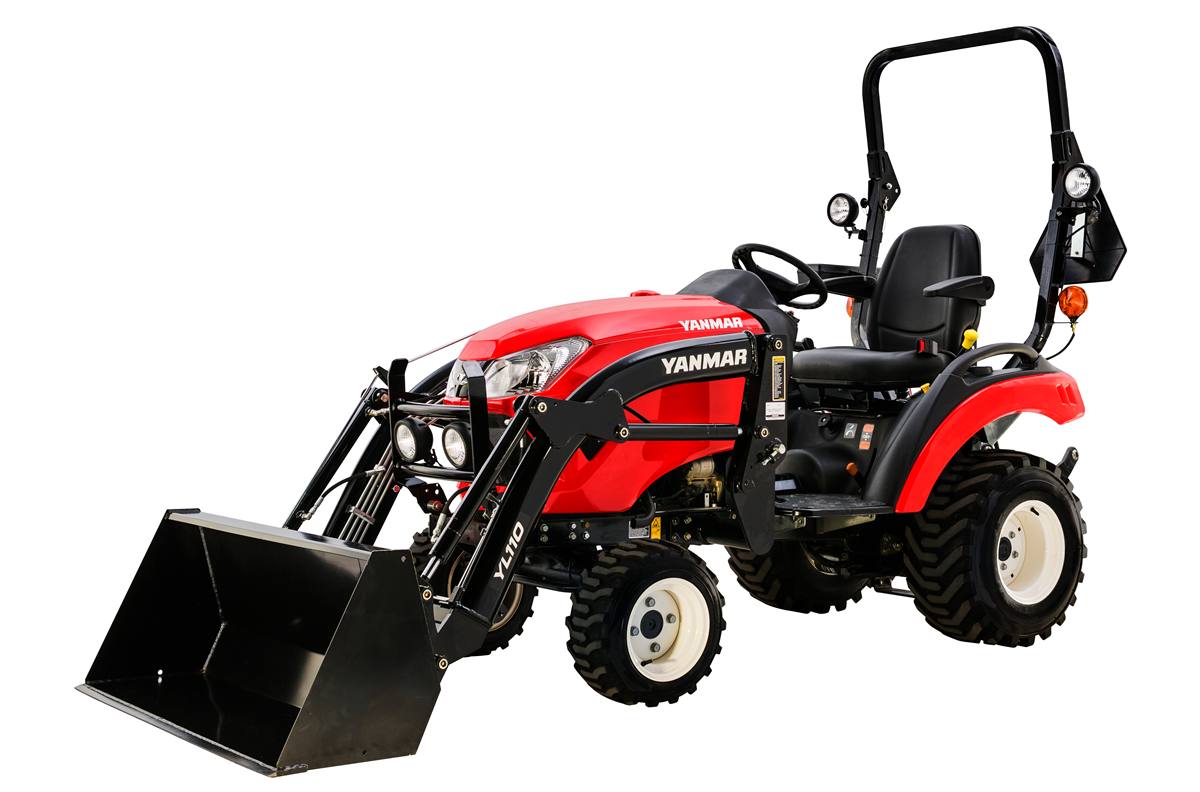

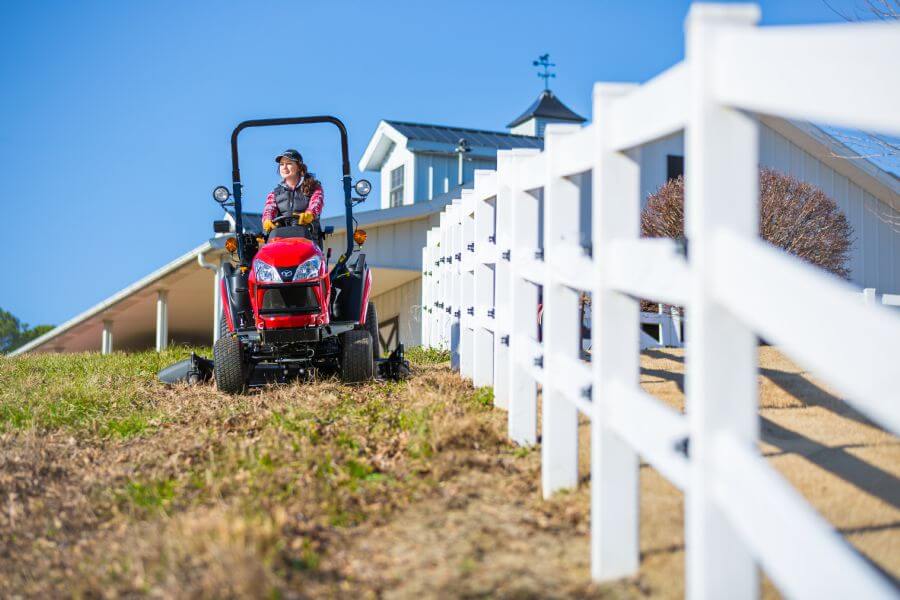

When it’s time to upgrade from your ordinary garden tractor to something that can tackle more and tougher tasks, put the Yanmar 221 on the job. Comfortable and easy to operate, the 221 packs the power you’d expect from a much larger machine.
*As rated by engine manufacturer
SLEEK NEW LOOK. NOW IN RED.
This tractor is built for the people who share our passion for the land and believe in working that land the right way. Not only is it built with a powerful, fuel-efficient engine to work all day, its sleek design is engineered for comfort and efficiency. Now in red. The color of passion. Because when it comes to a love of the land, we know you’re not alone.
BUILT TOGETHER TO WORK TOGETHER.
Yanmar makes all the major drivetrain components — the engine, transmission and axles — in-house. And because they’re made together to work perfectly together, you get a hardworking machine with more useable horsepower, less power loss and a smoother, more comfortable ride. We call it Performance Link Technology™. You’ll quickly appreciate it as a tractor designed to work as hard as you do.
COMFORT AND PRODUCTIVITY BUILT RIGHT IN.
A large, comfortable operator’s station provides easy access to all controls. The hydrostatic transmission, with convenient side-by-side pedals for simple forward/reverse operation, provides multiple range options to get the job done regardless of terrain or the implement you’re using. And, smooth hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue. It’s a tractor the whole family can operate.
Features
- Redesigned Operator Station with Comfort Seat
- Cast Iron Transmission and Front Axle and Dual Hydraulic Pump
- Two Side-by-Side Hydrostatic Transmission Pedals
- Full-Frame Chassis
- Electro Hydro Independent PTO with One-Touch On/Off
Specs
| Bore and stroke | 74 x 77 mm |
| Cooling System | Liquid cooled |
| Cylinders | 3 |
| Disclaimer | *As rated by engine manufacturer |
| Gross HP | 21.5 (16.0 kW) |
| Ignition Type | Indirect Injection |
| Lubrication | Full pressure |
| Net HP | 19.4 |
| PTO HP (Hyd) | 15.6 (11.6 kW) |
| Rated RPM | 3200 |
| Total displacement (cu. in.) | 60.6 (1.0 L) |
Warranty
| Accessories | 1 year |
| Engine/Drivetrain | 5-year or 2,500-hour limited warranty |
| Tractor | 2-year or 2,000-hour limited warranty |
Capacities
| Cooling System (qt) | 3.0 (2.8 L) |
| Engine Oil (qt) | 3.1 (2.9 L) |
| Front Axle (gal) | 3.7 (14.0 L) |
| Fuel Tank (gal) | 6.0 (22.7 L) |
| Transmistion Case (gal) | 4.1 (15.5 L) |
Drivetrain
| 2WD/4WD Engagement | Selectable |
| Brake | Wet disc |
| Clutch | Hydraulic |
| Cruise Control | Option |
| Mid PTO/RPM | 2057/ 3200 |
| Number of Ranges | 1 |
| PTO Type | Independent |
| Rear PTO/RPM | 554/ 3200 |
| Transmission Type | Hydrostatic |
